Banavie Swing Bridge

Location type

Bridge

Name and dates

Banavie Swing Bridge (1901-)

Opened on the Mallaig Extension (West Highland Railway).
Opened on the Caledonian Canal.

Description

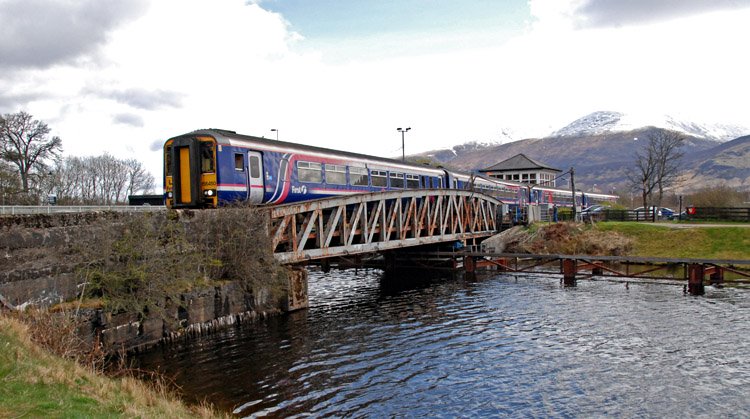

This single track railway swing bridge is immediately north of Banavie station. It carries the Fort William to Mallaig line at the foot of Neptune's Staircase, a series of interconnected locks on the Caledonian Canal.

The bridge was built by Alex Findlay and Co. Originally hand cranked it is now hydraulic. The bridge pivots at the south end, controlled from the nearby modern Banavie signalling centre which is to the south and overlooks the bridge.

It is one of three swing bridges which crossed the Caledonian Canal. The others were at Fort Augustus Swing Bridge (on the Invergarry and Fort Augustus Railway, removed) and Clachnaharry Swing Bridge (still open on the Inverness and Ross-shire Railway).

Local

To the north is Neptune's Staircase, a ladder, a series of connected locks on the Caledonian Canal.

Tags

Swing bridge

External links

Canmore site record
NLS Collection OS map of 1892-1914
NLS Collection OS map of 1944-67
03/06/2021




Chronology Dates

  /  /1912Mallaig Extension (West Highland Railway)
Tomonie Signal Box closes and Banavie Swing Bridge signal box becomes a block post.
14/06/1987West Highland Railway
Mallaig Extension (West Highland Railway)
New RETB signalling centre opened at Banavie - the first step is to take over operation of the Banavie Swing Bridge as a swing bridge and gate box. Banavie signal box closed.
